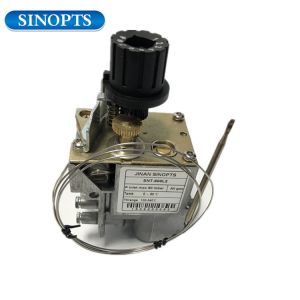

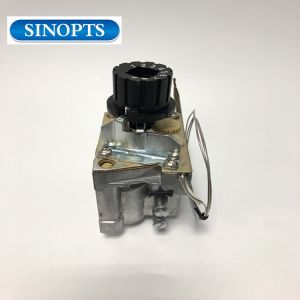

Product Description:The gas valve is used on various commercial fryers, pasta boilers
and other appliances. The valve is rated at 100 to 340 degrees, inlet 1/2" BSP, outlet 3/8" BSP, thermocouple connection M9X1,
wire length can be customized. The valves combine a thermostat and
flame failure device in one unit. They are supplied with the
plastic body and control knob.
With pressure regulator. Max capacity can be 5.0 CBM/hour.
Main Features:
1) Thermoelectric flame supervision device with restart interlock.
2) Pressure reglator with. Direct pressure regulator class B.
3) Pilot gas rate adjuster.
4) With inlet and outlet pressure test points
5) Max capacity can be 5.0CBM/hours
Product Specification: | SINOPTS THERMOSTAT TECHNICAL DATA |
| Operating temperature | 100ºC-340ºC | Customed for per request |
| Ambient Temp | 0ºC-80ºC | |
| Intake way | 1/2---14NPT . Quick connector | Customed for per request |
| Outlet way | M16×1.5 , 3/8-19NPT | Customed for per request |
| Material | Aluminum alloy | |
| Maximum intake pressure | 50mbar | |
| Exhaust pressure | 3-18mbar | |
| Voltage regulator | Without | |
| Sealed way | Rubber seal | |
| Thermocouple interface | M8×1.0 , M9×1.0 | Customed for per request |
| Drive mode | Thermal expansion | |
| Suitable gas | Liquefied petroleum gas, natural gas | |
| Solenoid valve drop-away current and absorption current | 80-200mA | Customed for per request |
